Ventus V9600 Controller

Ventus V9600 Controller (Version 1.7)

The Ventus V9600 Controller V1.7 delivers high-precision power management, adaptive throttle response, and complete control customization — built for riders who demand performance and reliability from their e-moto.

Important:
A bike-specific 1.7 adapter harness is required for installation and is sold separately.
Please ensure you select the correct harness for your model before checkout.

Included Components

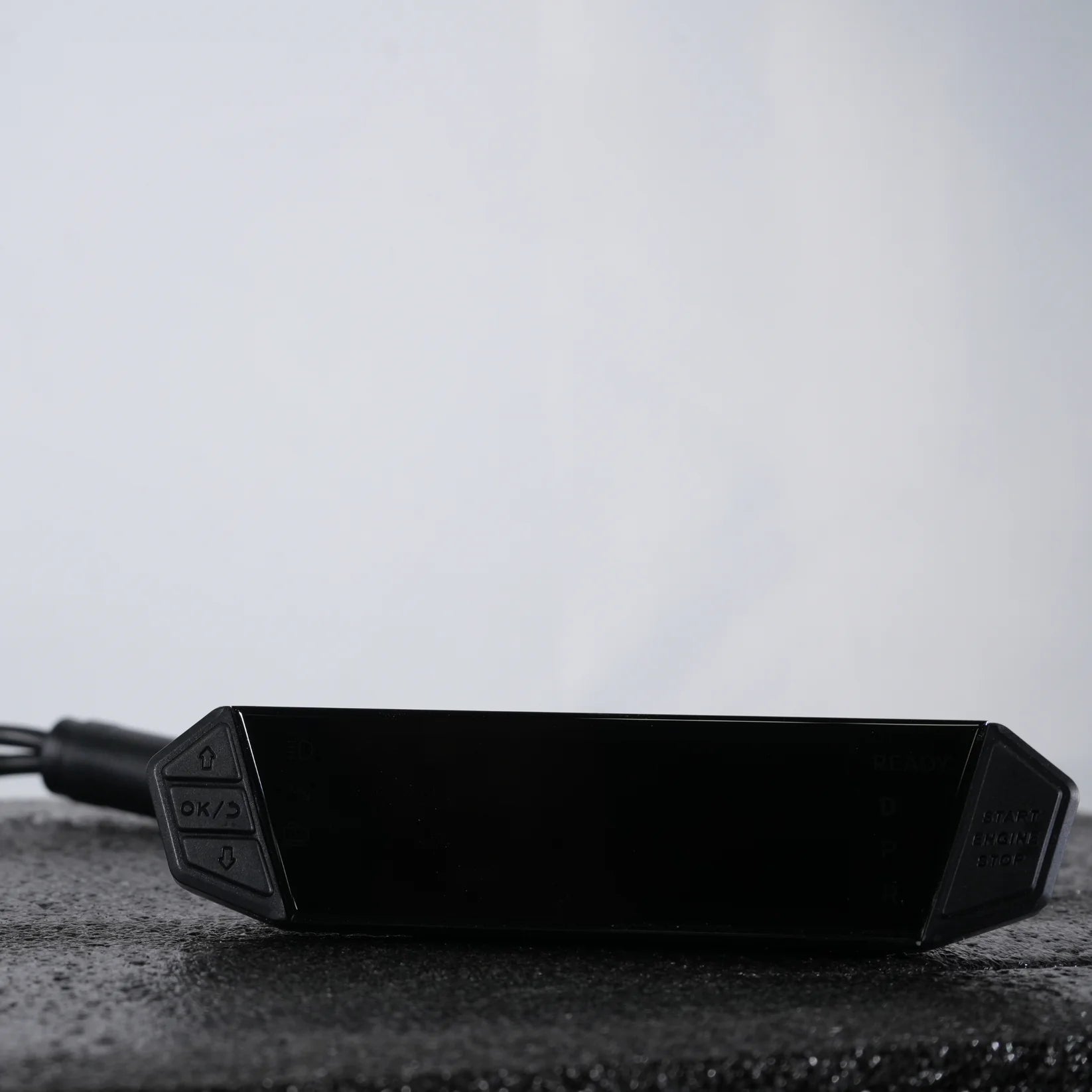

• VTB LCD Screen: Included

• VTB Hand Controls: Included

• Instrument Panel Bracket × 1

• Switch Assembly × 1

• Thumb Throttle × 1

• Vehicle-specific Adapter Cable × 1

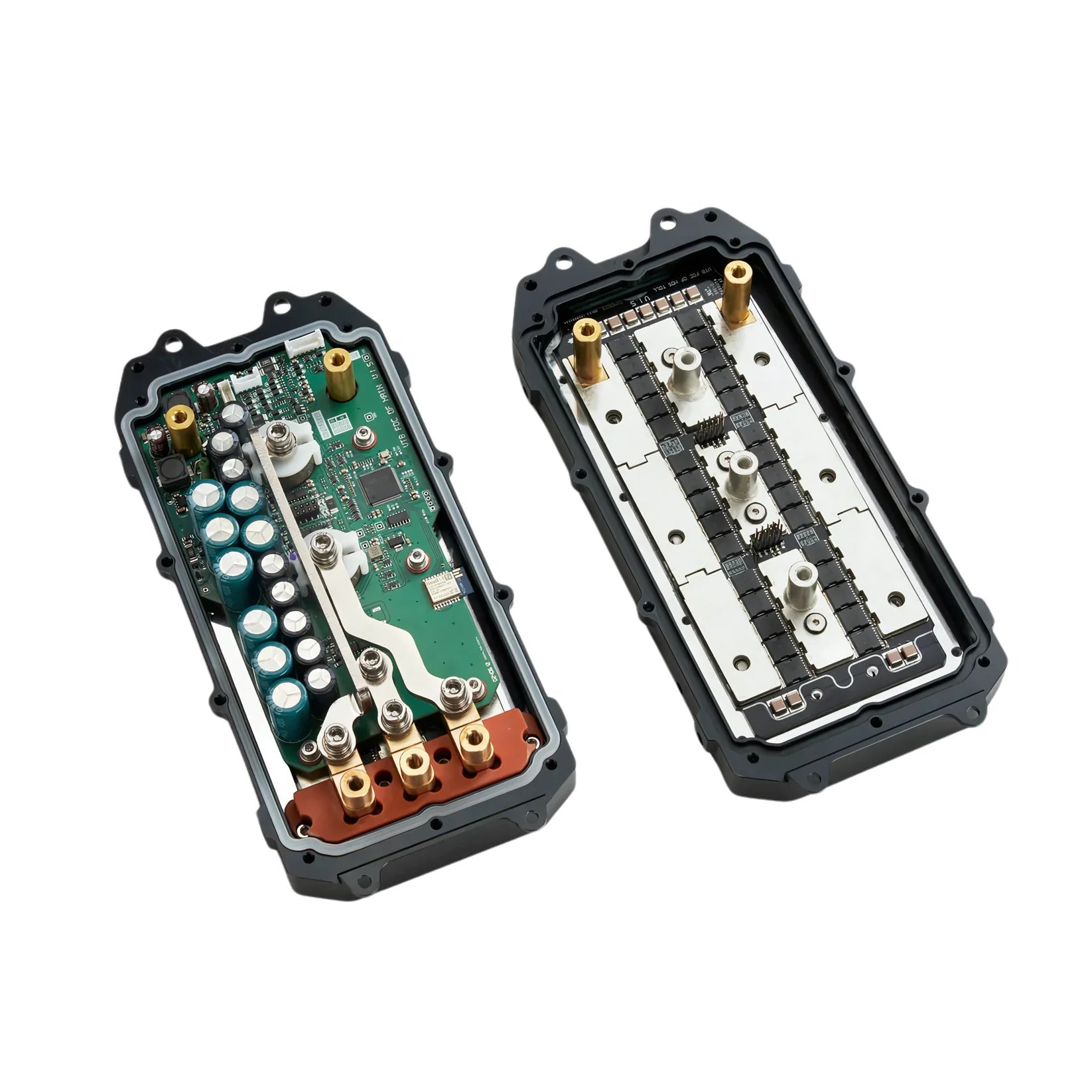

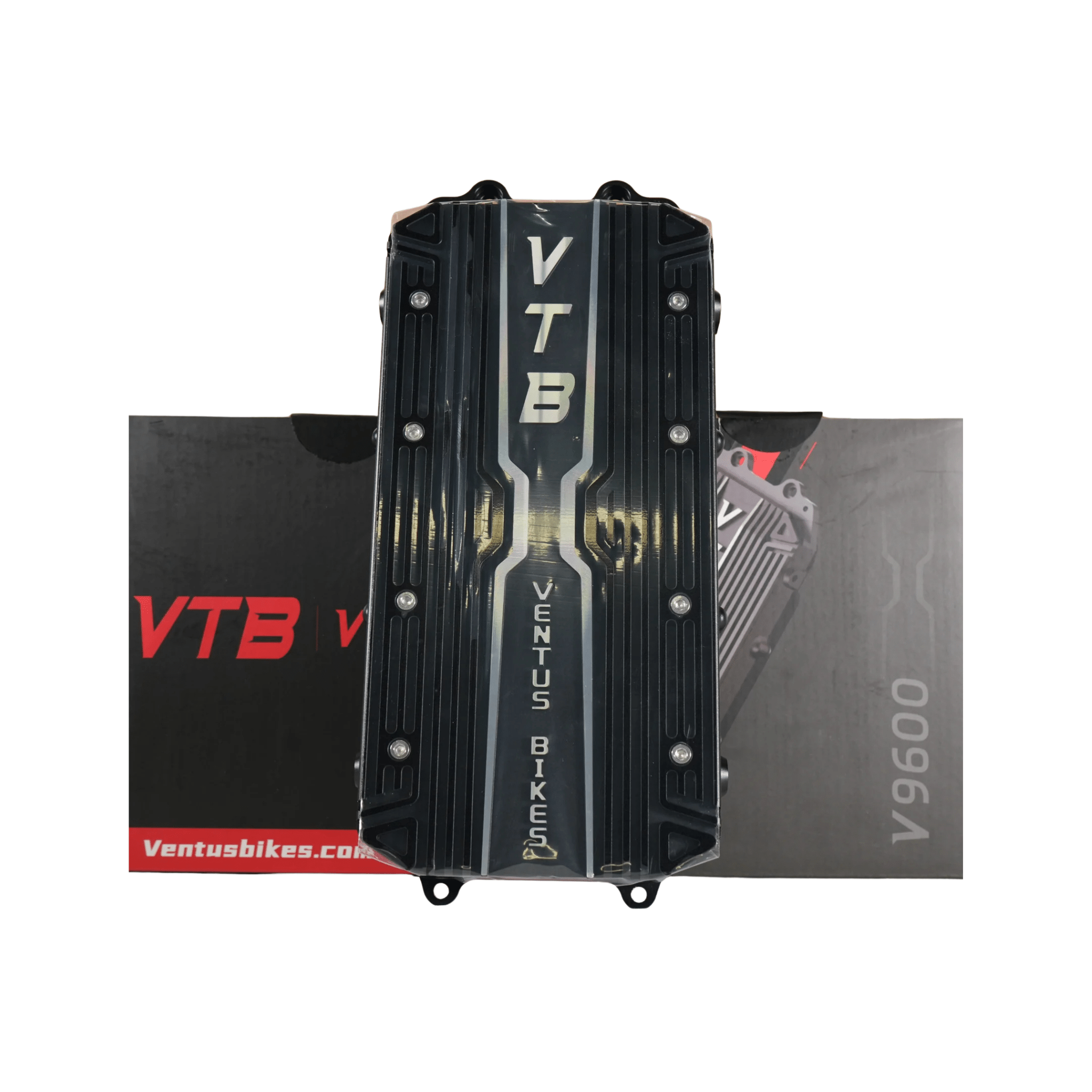

• Ventus V9600 Controller × 1

Controller Specifications

• Maximum Bus / Phase Current: 500 A / 960 A

• Peak Power: 44 kW

• Voltage Range: 30 V – 99 V (Limit) / 48 V – 84 V (Operating)

• Operating Temperature: −25 °C to 80 °C

• Control Type: Sinusoidal Vector Control

• Waterproof Rating: IP67

Controller Features

• Fine-tunable throttle response

• High-reliability redundant design

• Adaptive compensation for low battery levels

• 3 power modes and 5 riding modes with quick switching

• 5 regenerative braking levels for adjustable feedback

• Linear electronic braking for up to 30% battery savings

• Customizable throttle curve, burst mapping, and power output

• Full-function Ventus App (iOS & Android)

• Bluetooth binding with battery BMS for real-time data display

• CNC-machined radiator for efficient cooling

• Sensory unlock and high-resolution color display interface

Compatible Motors

• VTB Beast 28 kW / 35 kW

• Sur-Ron Light Bee Factory

• Sur-Ron Ultra Bee Factory

• Talaria Sting Factory / Talaria X3

• 79 Bike Falcon Factory

• QS165 / LTXS / Sotion FW01 / Sotion Talaria

Compatible Batteries

• Series 16–22

• Works with most factory and modified battery configuratio
