KKE 37MM Aluminum Front Fork Suspension Kit Fit SURRON Light Bee, E-Ride Pro-SS, Talaria Sting MX3/MX4/R (Collective)

SKU: MD37B27-V5-BK
$799.00
-11% $899.00 $799.00
In stock
Usually ships within 24 hours

Got questions?

Feel free to get in touch

Ask an expert!

Email

KKE High-quality Front Fork For Talaria Sting MX3 / R MX4

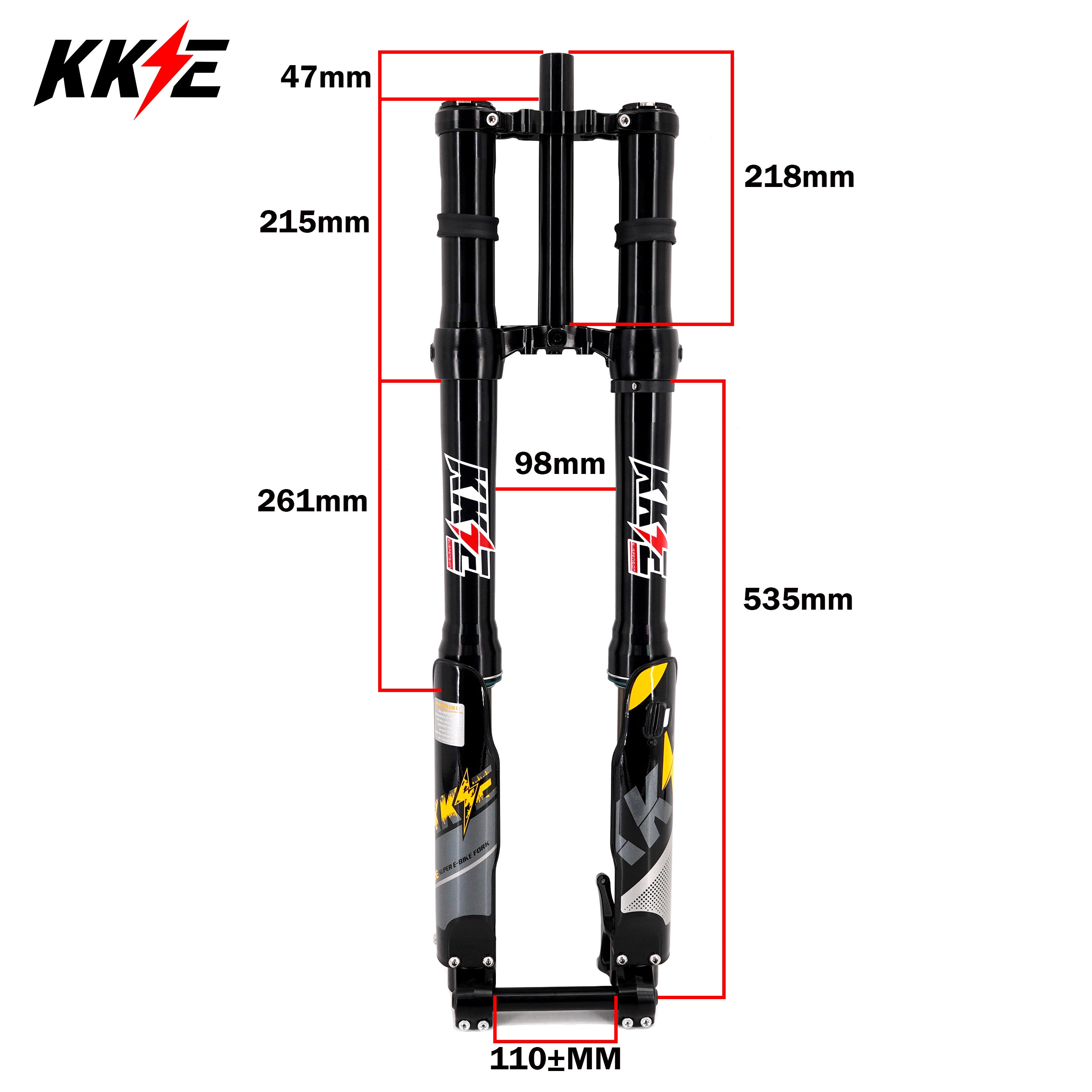

Specifications:

  • Length （Axle to Crown): 750mm
  • Travel: 210mm
  • Fork Offset: 32mm
  • For Rider Weight: 46lbs Spring  (23Ibs on each side) Fit 175pounds~220pounds riders weight
  • Architecture: Upside down fork
  • Stanchions: 37mm, 7000 aluminum hard anodized coating
  • Outer tubes: 6069 aluminum, anodized black

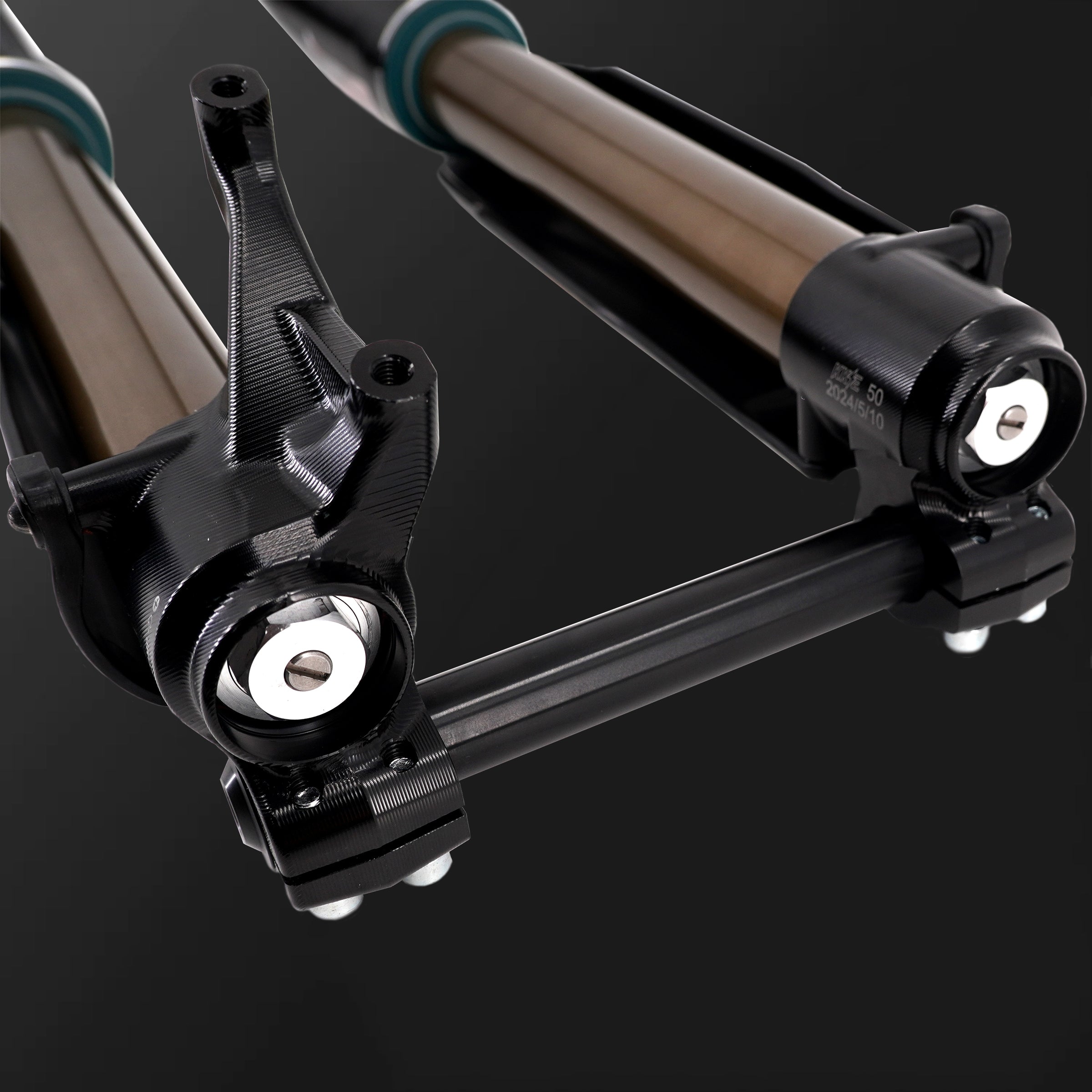

  • Dropouts: 6061 aluminum, anodized black
  • Triple clamps: 6061-T6 aluminum, CNC-machined finishing
  • Steer tube: 28.6mm,6061-T6 aluminum
  • Damping: Symmetrical, adjustable open cartridge
  • Damper bodies: 7050-T6 aluminum, anodized coating
  • Weight: 5.3kg(include triple clamp set)

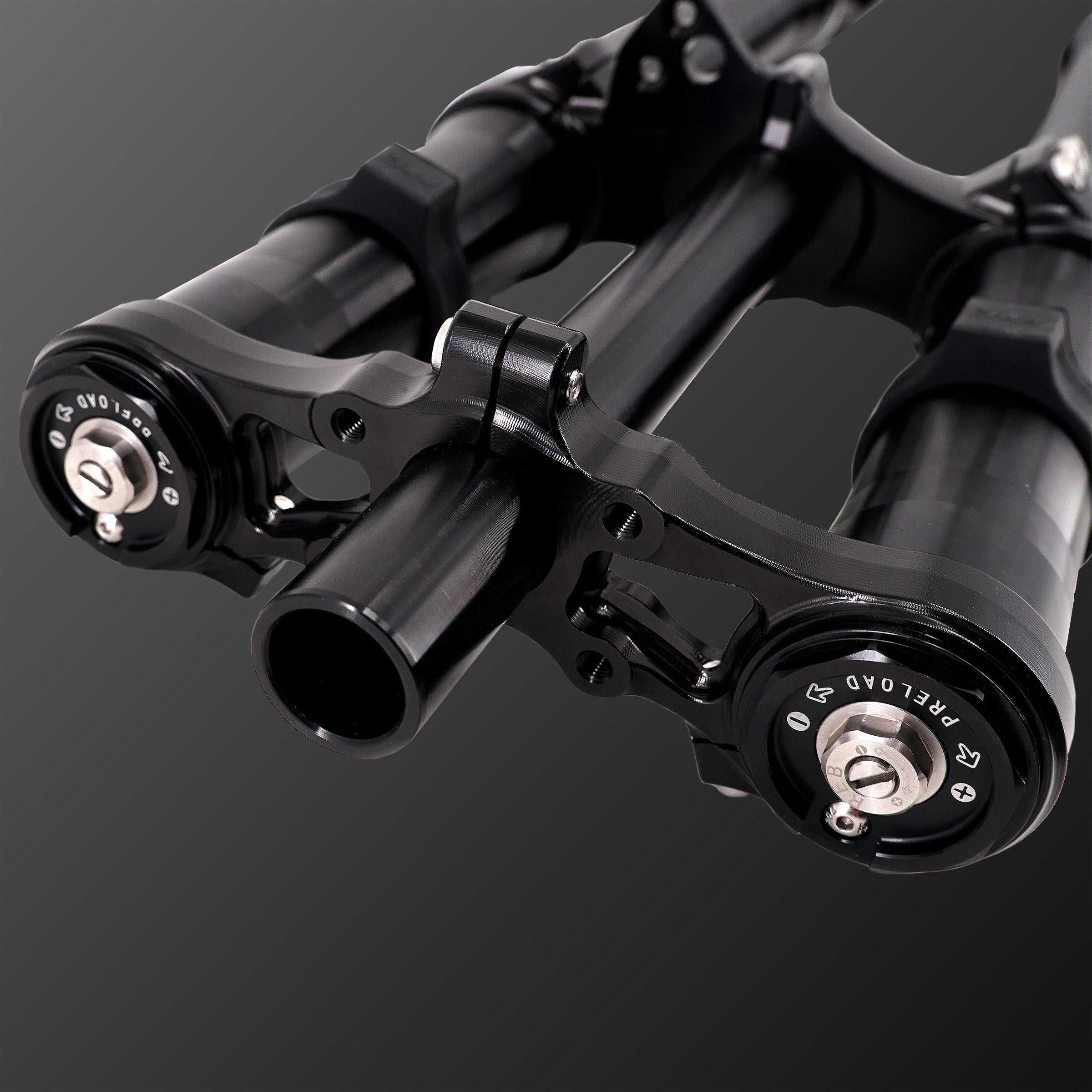

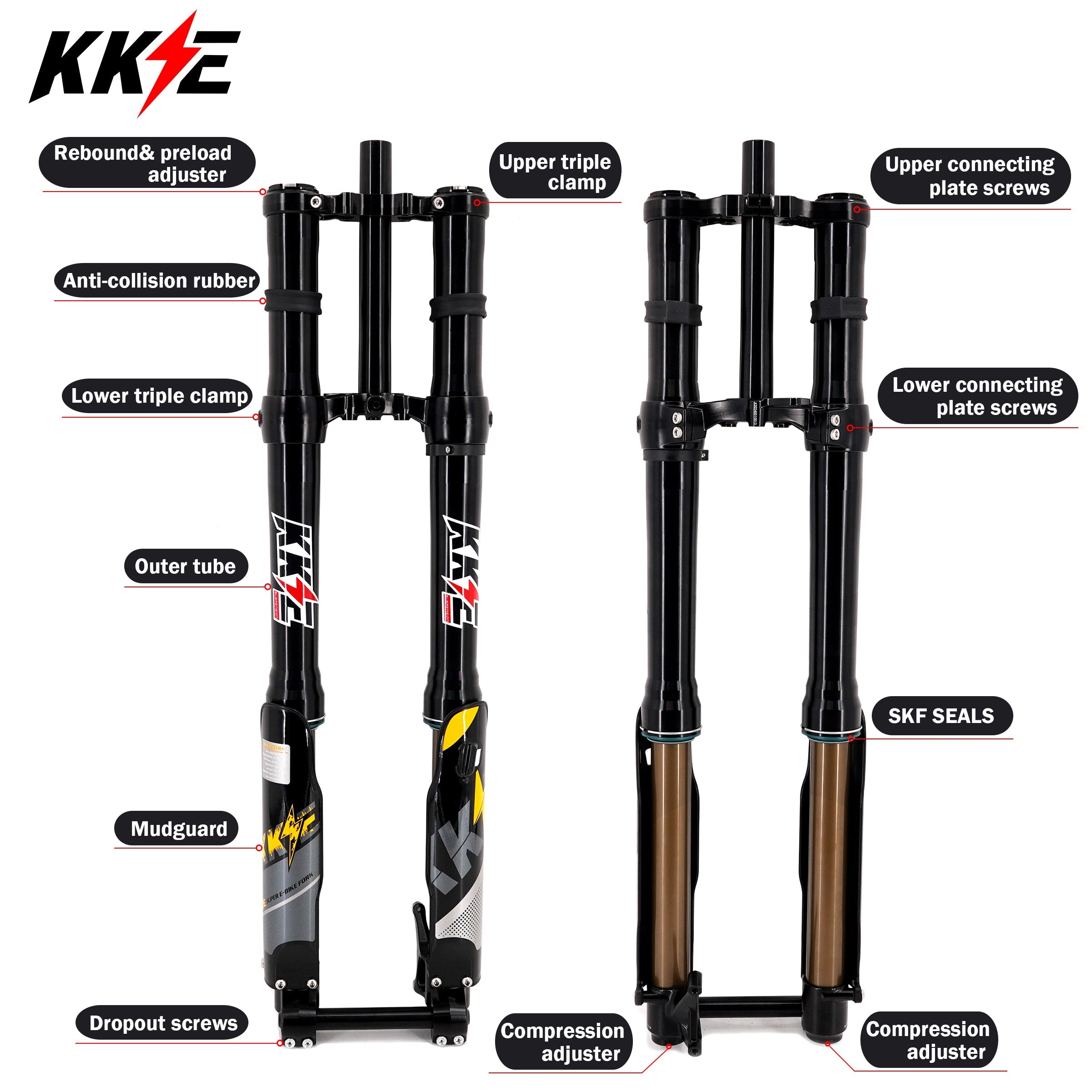

  • Adjustments: Compression, Rebound,Preload
  • Axle: 20mm• Axle to Crown: 750mm @ 210mm of travel
  • Seals: SKF
  • Guards: PP
  • Spring: Coil

Features:

1. Lightweight designed fork leg with CNC-machined finishing, less unsprung mass, better handing

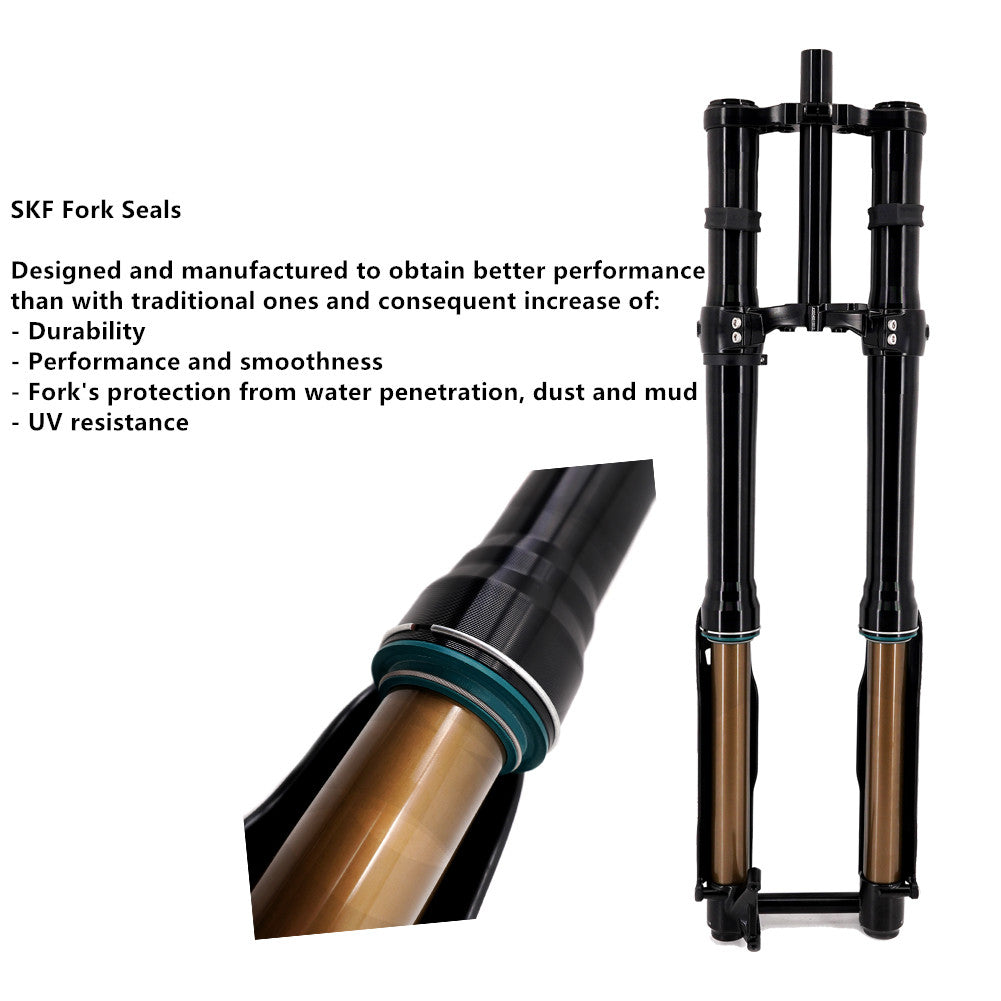

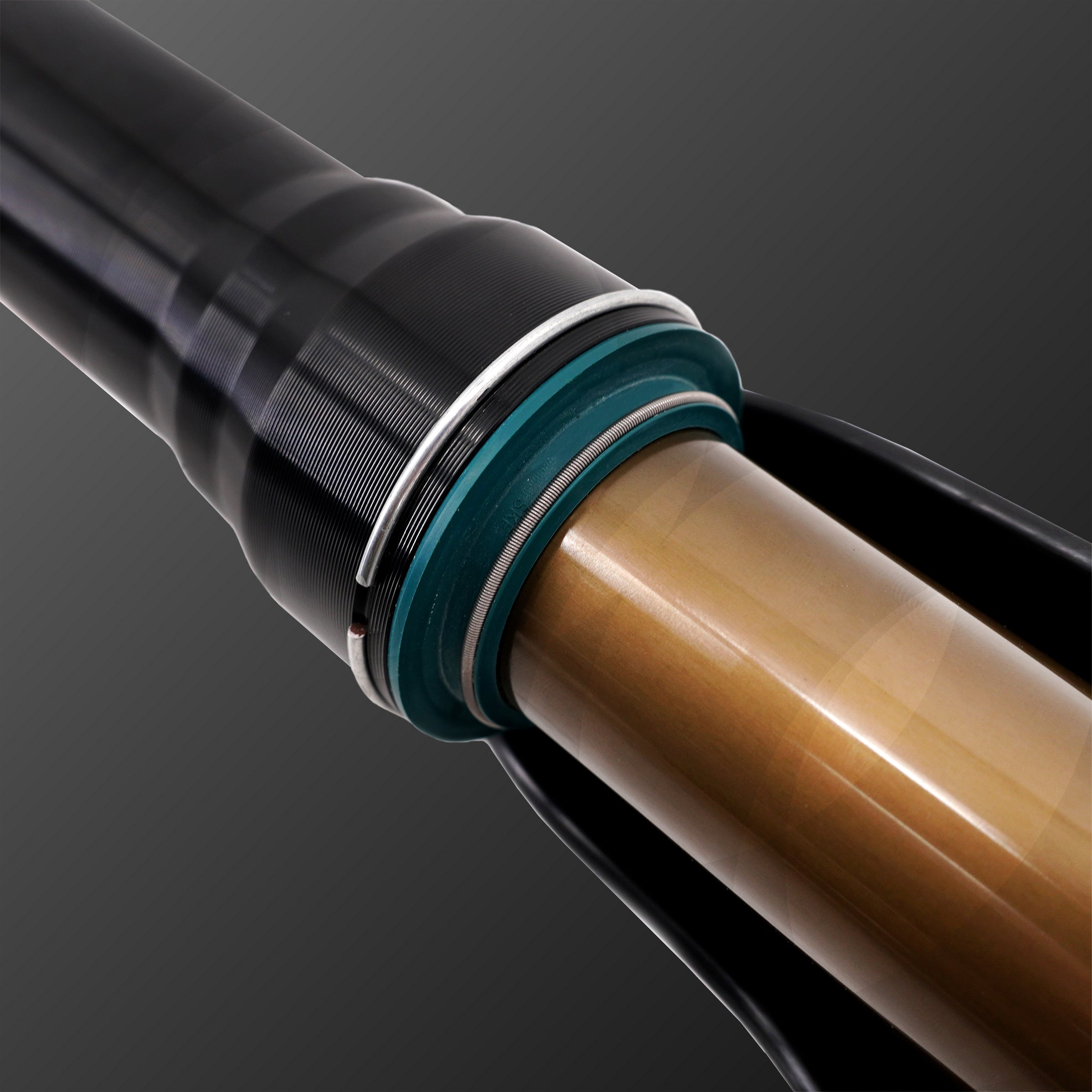

2. SKF oil seals and dust seals ,less friction ,more smooth

3. Alloy fork tube with DU-bushing guiding design ,better stiffness and torsional rigidity

4. 7000 alloy inner tube with hard-anodizing treatment surface

5. Race-proven damping system with mid-valve stack and hydro stop function offering more progressive damping at the medium travel and more support at the end

6. Every clicker of the compression/rebound / adjustment will find its way in different scenario

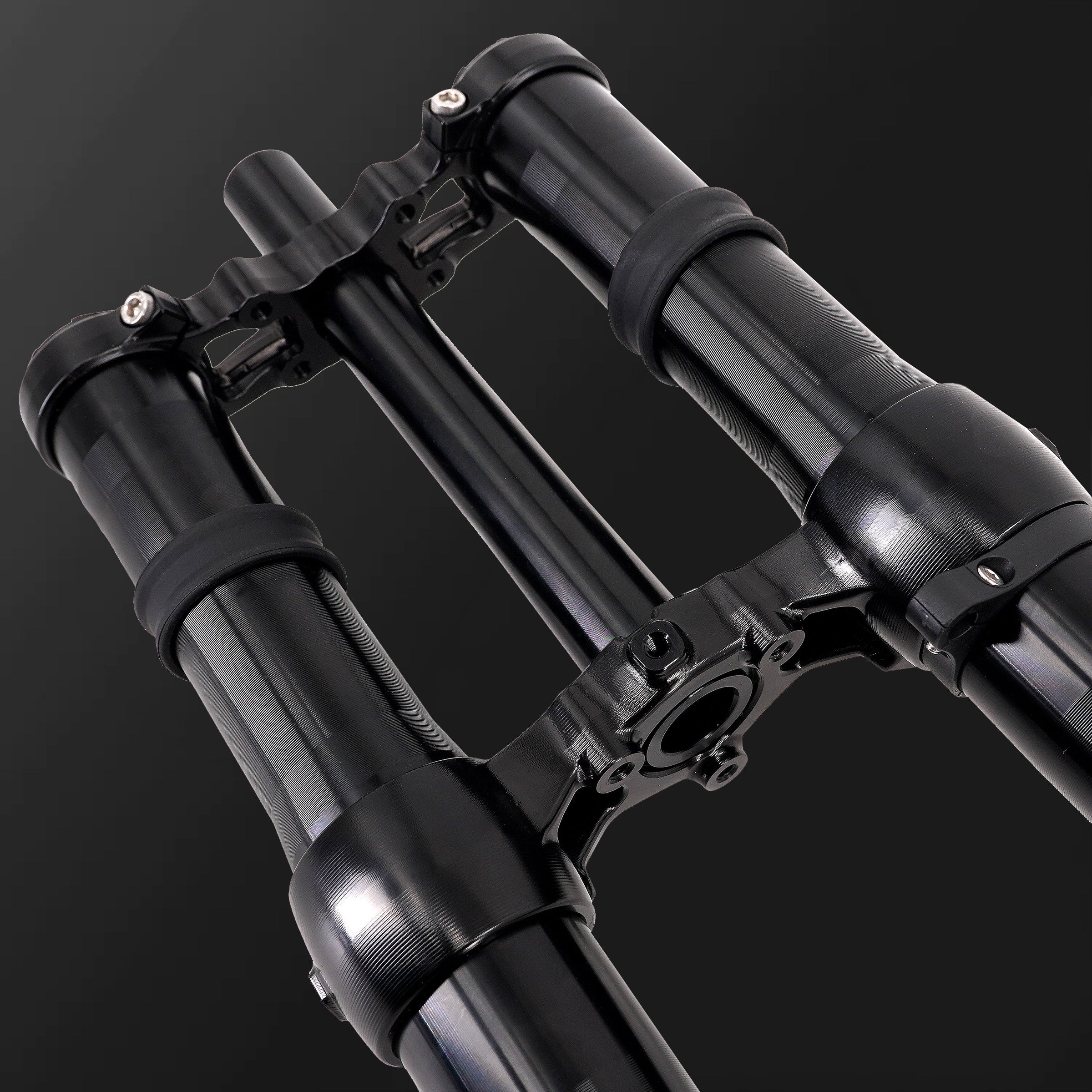

7. CNC triple clamp ,less weight ,more stiffness ,better looking



Recommendation for Riders:

  • KKE Front Fork assembly with 46lbs Spring (23Ibs on each side)  Fit 175pounds~220 pounds Riders Weight
  • Note: If you have any other request or over weight, please feel free to contact us for more details



Fitment:

  • Fit Talaria Sting MX3 / MX4 / R
  • Fit E-Ride Pro-SS 2024
  • Fit Surron Light Bee



Package Included:

  • Assembled Front Fork 1set
  • Note: We matched left mudguard & right mudguard, Not installed!



Color:

  • Black


Placement on Vehicle:

  • Front Fork


Maintenance:

Your fork requires periodic maintenance, cleaning, and inspection. Torque values of bolts and fasteners must be checked periodically, more often if riding in extreme conditions. To maintain top performance, it is recommended that the fork be periodically disassembled, cleaned, dried and re-lubricated.

SUGGESTED SERVICE INTERVALS FOR DORADO
(Extreme riding and harsh conditions may require more frequent service)
