RFloXa Hawk35 Max Plus Fork

RFloXa Hawk 35 Max Plus Fork

Description:

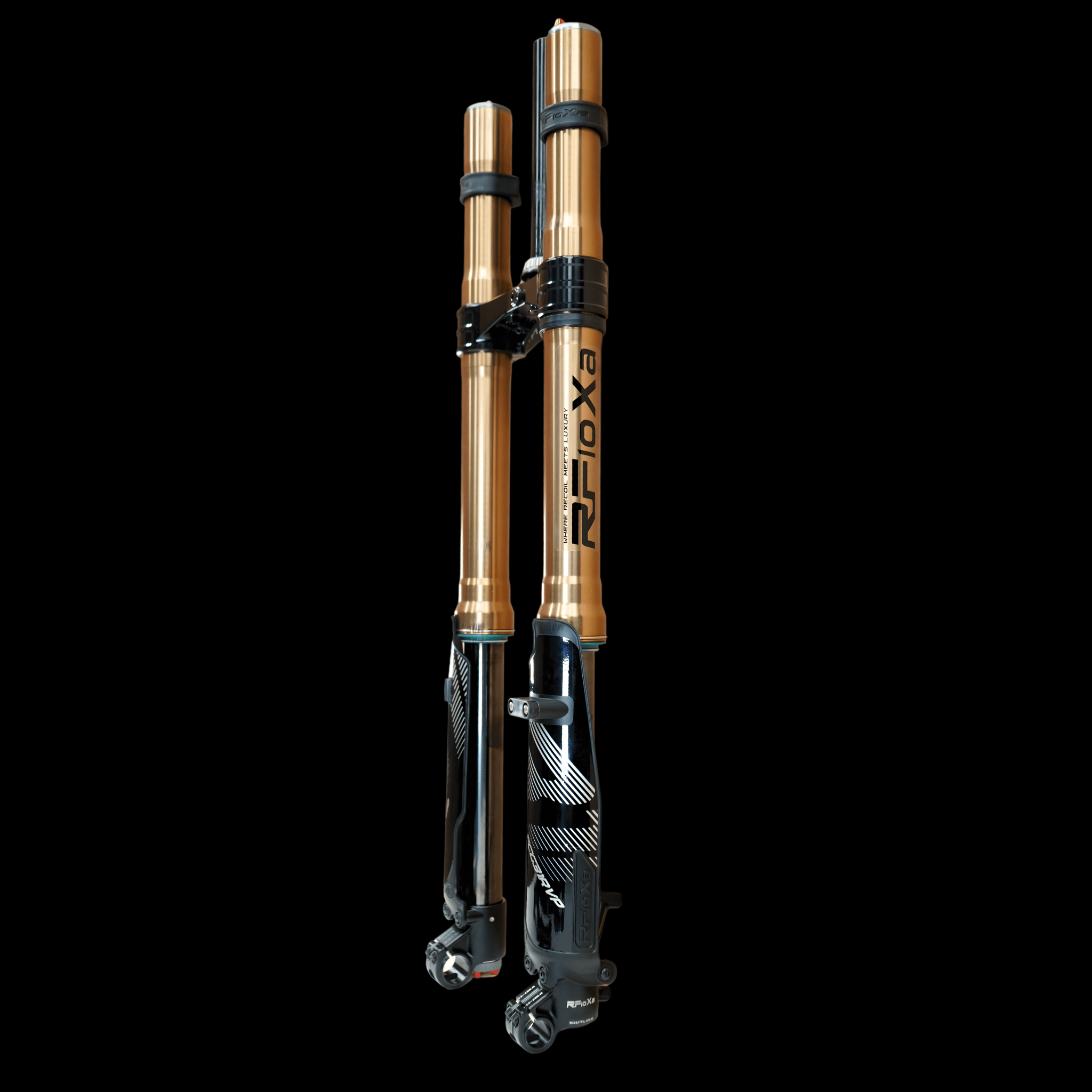

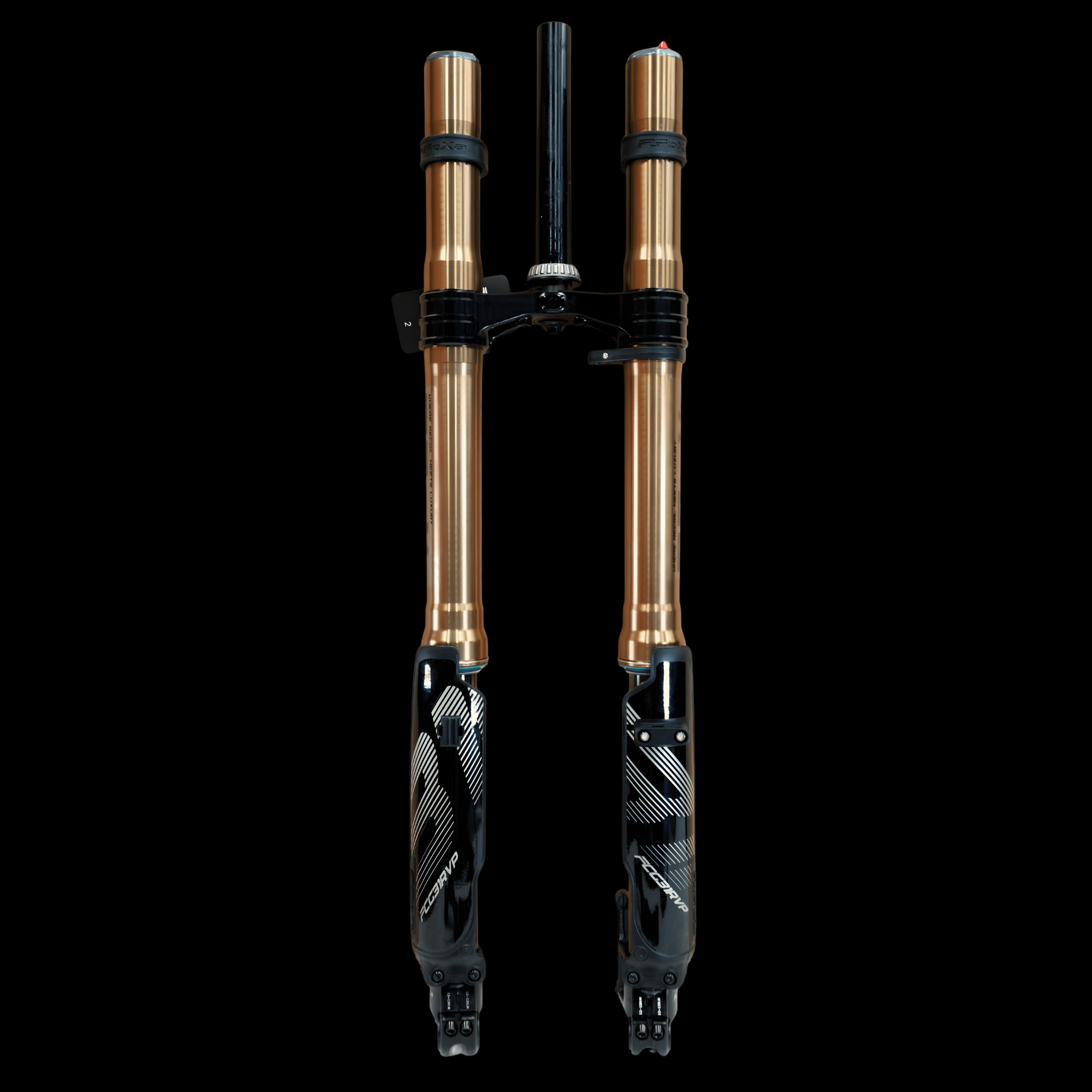

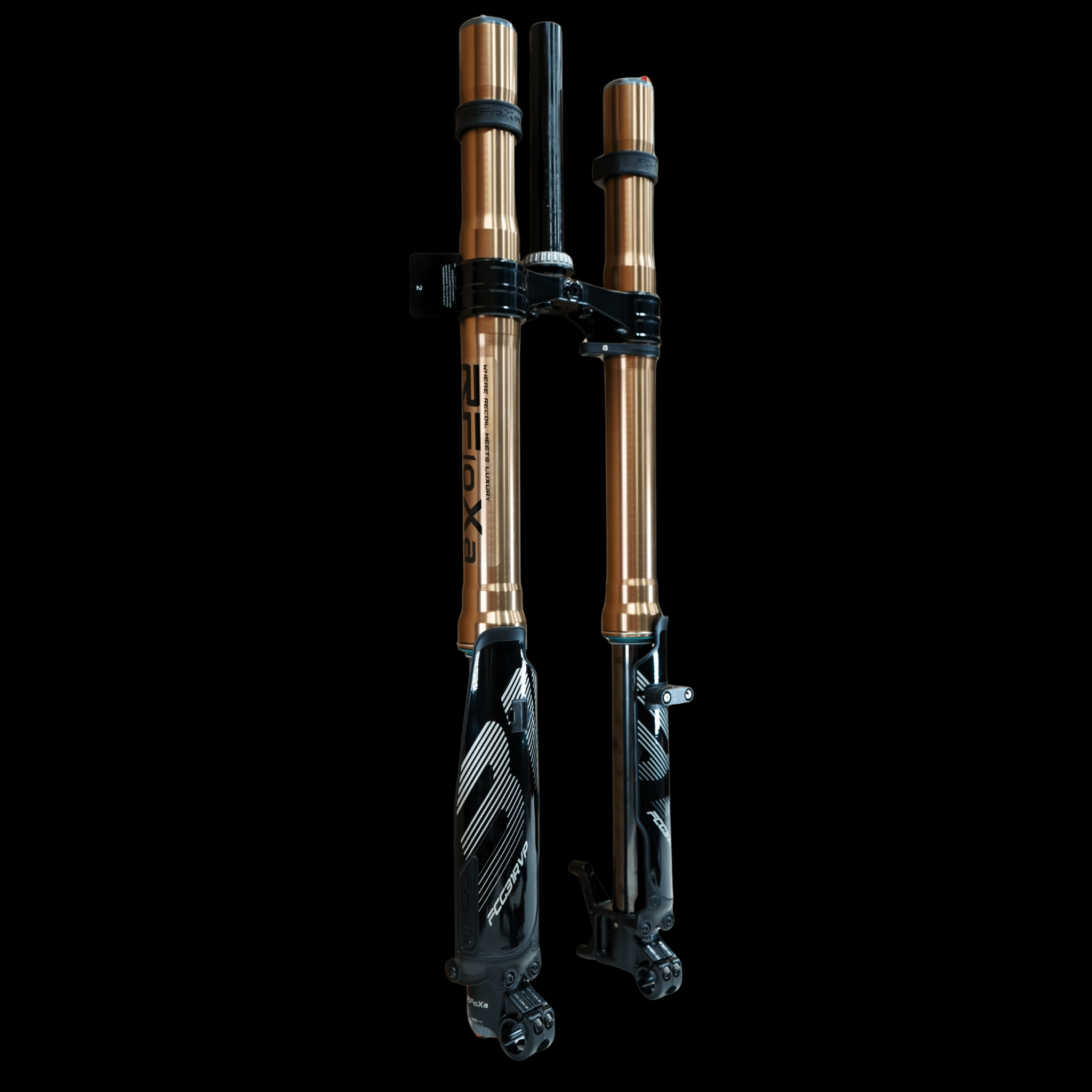

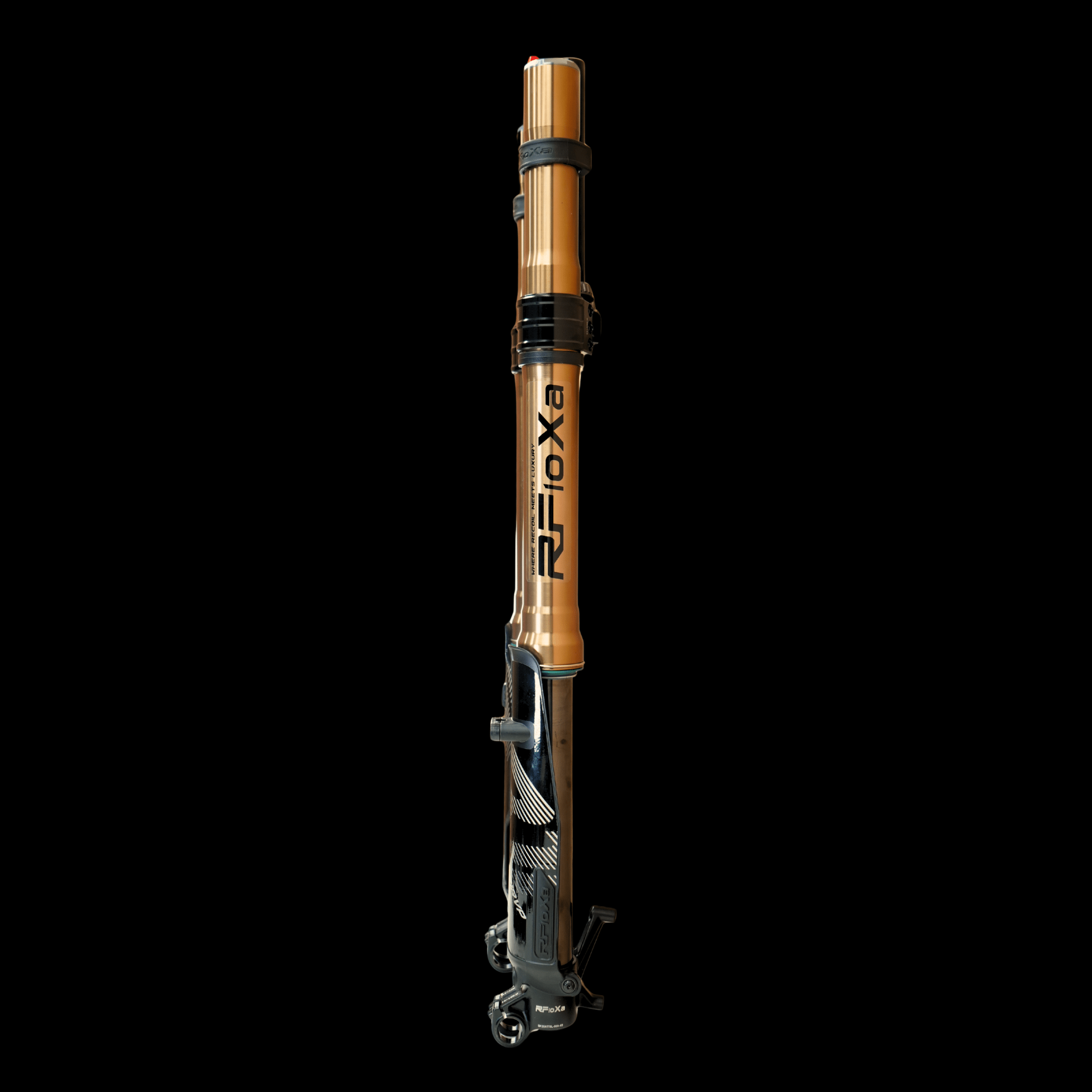

Exclusively created for Pinned Electric, the RFloXa Hawk 35 Max Plus Fork is designed for the E Ride Pro 3.0 and SR. Featuring 225mm of travel and a 775mm overall length, this inverted oil-spring fork offers adjustable suspension performance for demanding off-road riding.

Bronze-coated upper tubes and black DLC-coated stanchions help reduce friction and improve wear resistance, while SKF seals support smooth operation and reliable sealing. Adjustable high-speed compression, low-speed compression, rebound, and spring preload allow you to tune the suspension to your riding style and terrain.

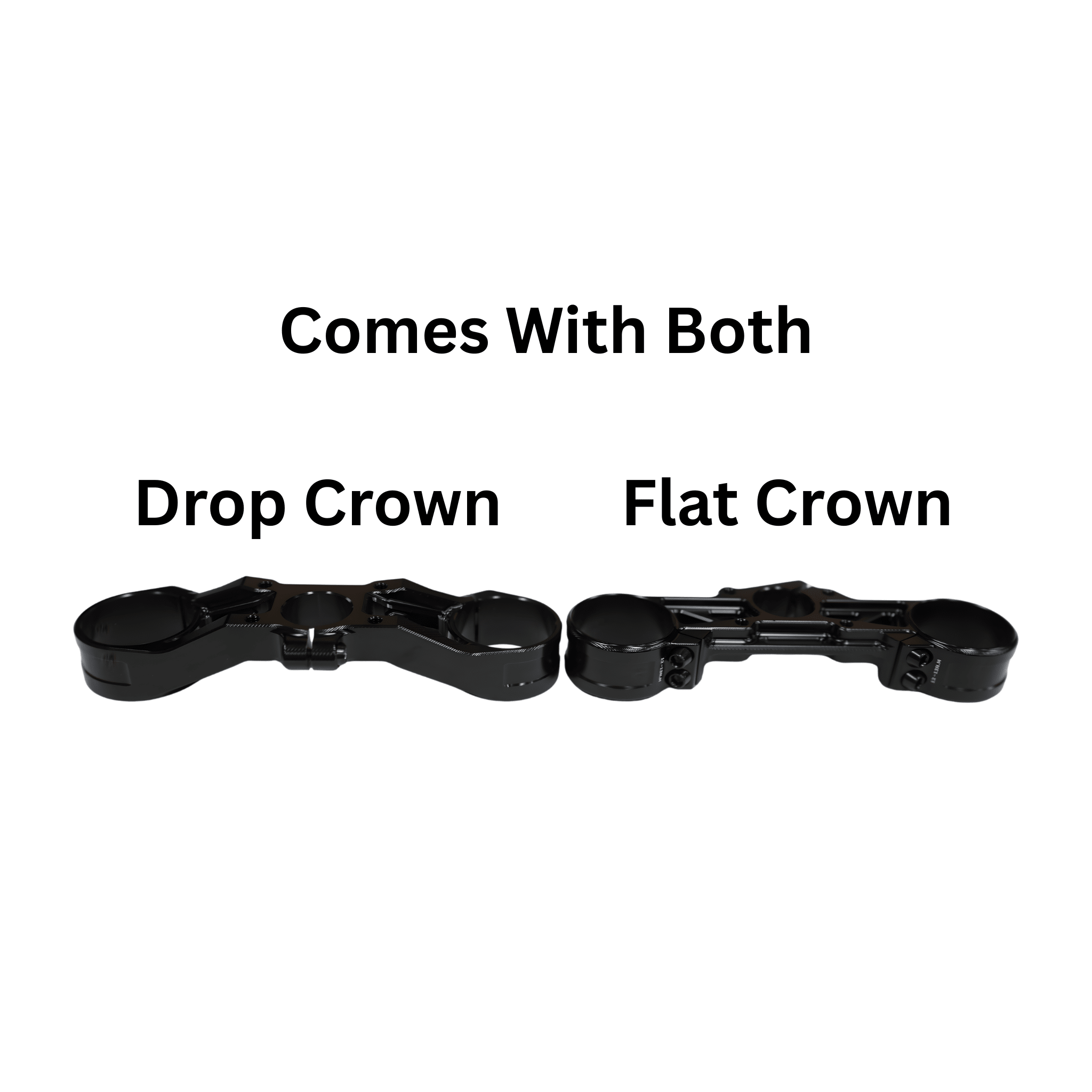

Both flat and drop crown triple clamps are included, providing setup options for 19-inch and 21-inch front wheels and preferred riding geometry.

Specifications:

• Brand: RFloXa
• Model: Hawk 35 Max Plus
• Exclusive Edition: Created exclusively for Pinned Electric
• Overall Length: 775mm
• Travel: 225mm
• Tube Diameter: 37mm
• Damping System: Inverted oil-spring
• Adjustments: High-speed compression, low-speed compression, rebound, and spring preload
• Upper Tubes: Bronze coated

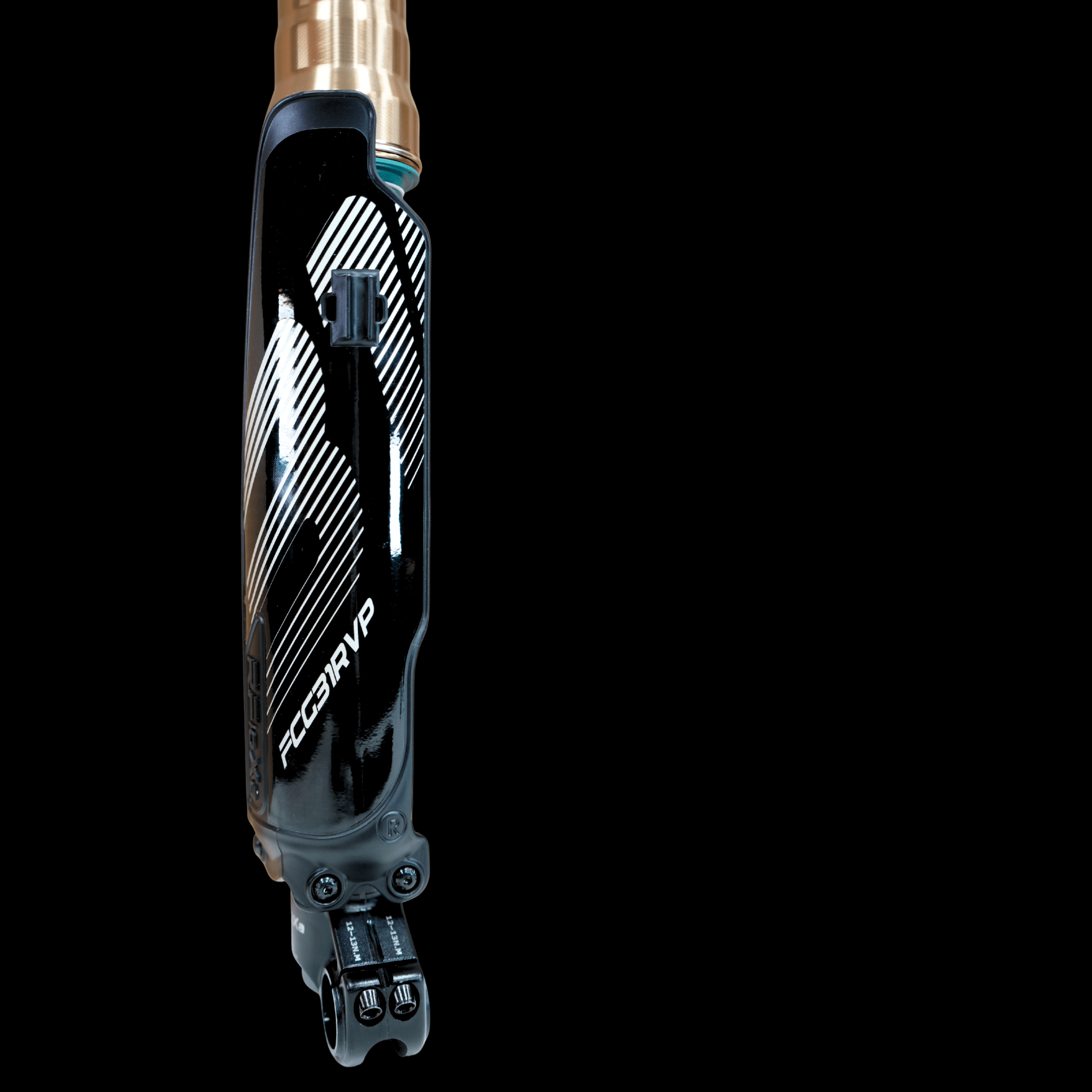

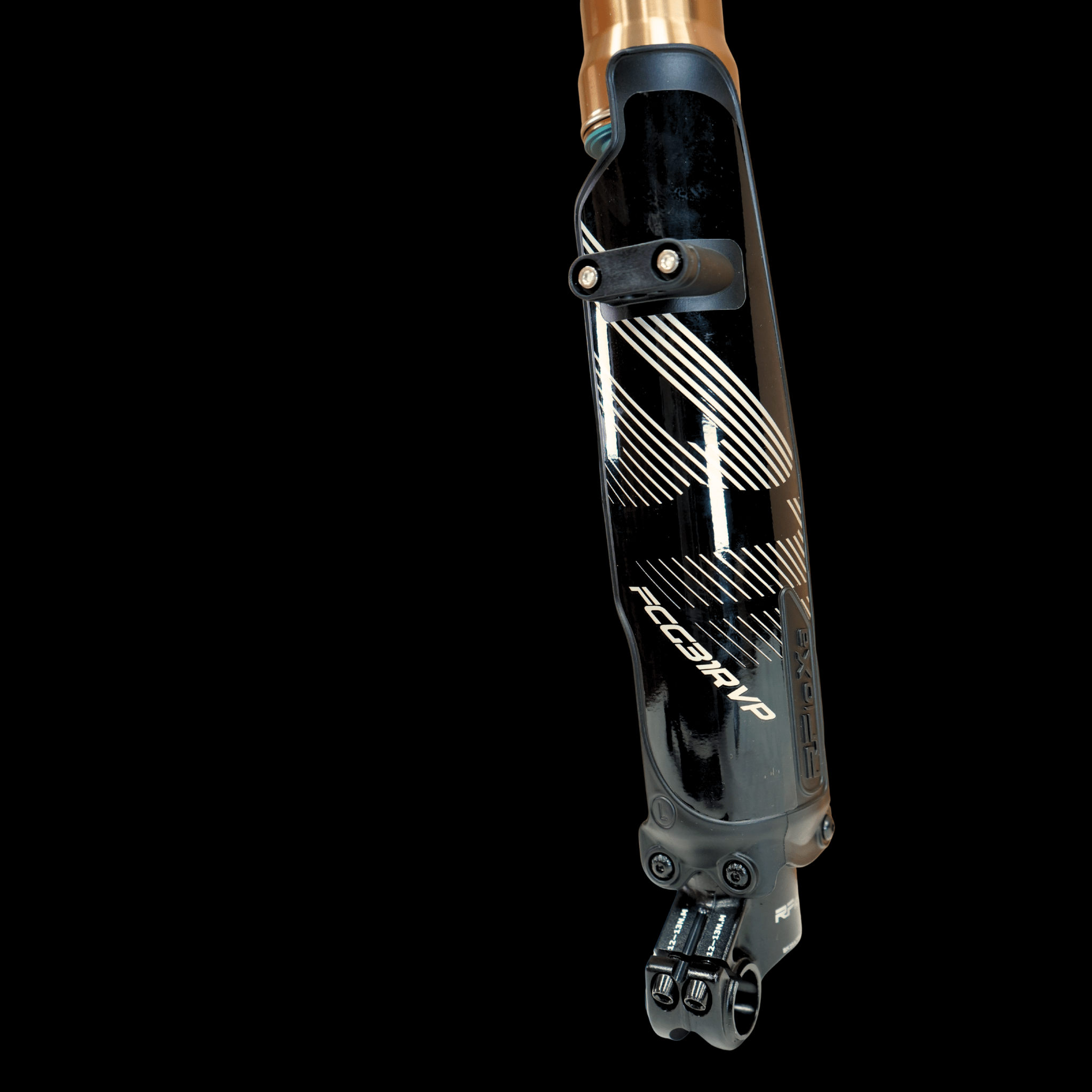

• Stanchions: Black DLC coated
• Seals: SKF
• Triple Clamps: CNC machined
• Crown Options: Flat and drop crowns included
• Front Wheel Compatibility: 21-inch and 19-inch

Fitment:

• E Ride Pro 3.0
• E Ride Pro SR

Confirm wheel size, brake mounting compatibility, and headset requirements before ordering.

What’s Included:

• (1) RFloXa Hawk 35 Max Plus fork assembly
• Flat crown triple clamps
• Drop crown triple clamps

Installation:

Professional installation is recommended. Select the appropriate crown configuration for your bike’s wheel size and required geometry.

Verify headset adjustment, brake alignment, cable routing, and all mounting hardware before riding. Adjust spring preload and damping settings to suit the rider and riding conditions.

Important Notes:

• Created exclusively for Pinned Electric.
• Both flat and drop crowns are included.
• Designed specifically for the E Ride Pro 3.0 and SR.
• Wheel compatibility depends on the crown configuration and adequate clearance.
