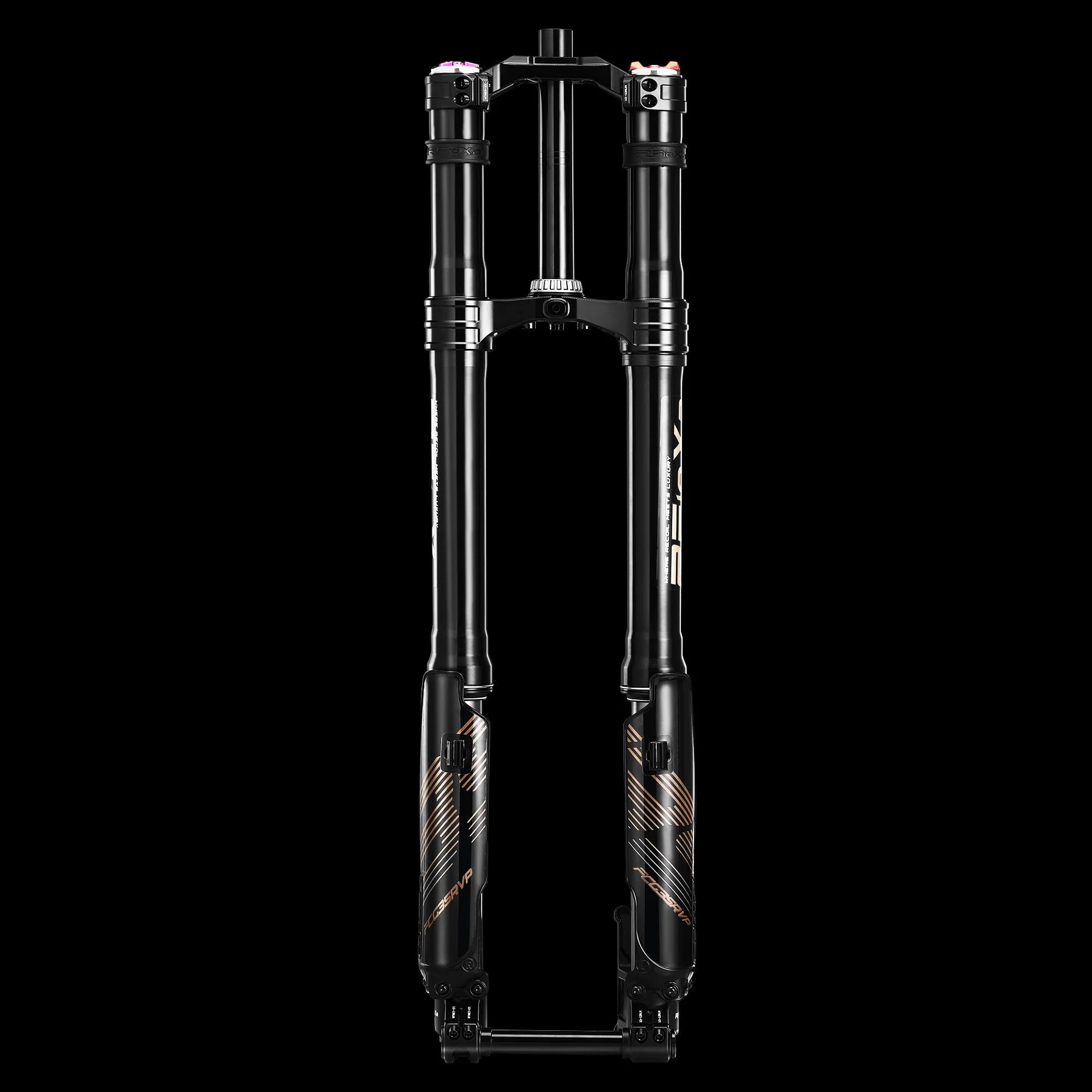

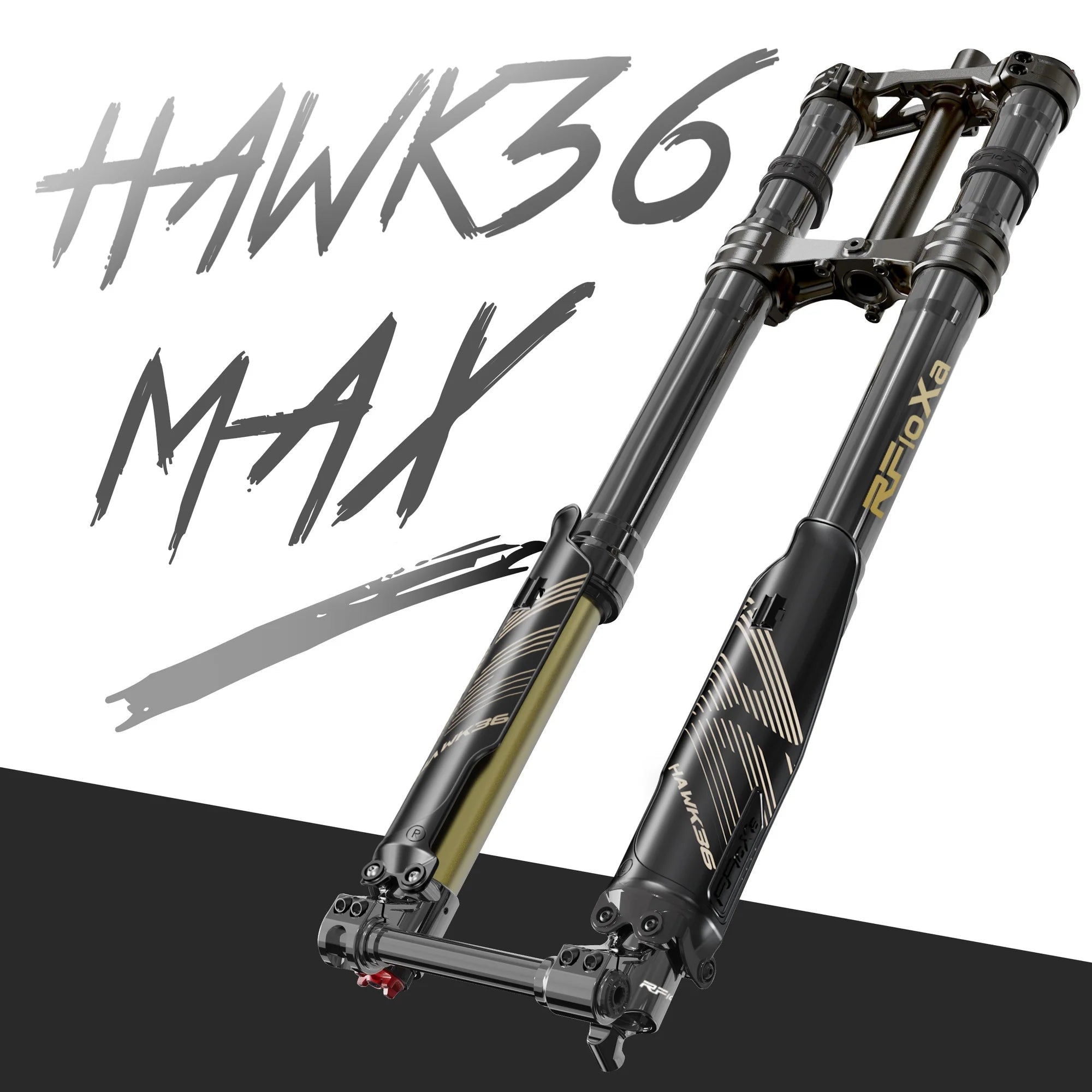

RFloXa Hawk36 Max Fork

① Heavy-Duty E-Moto Suspension Performance — This 228mm inverted fork is designed specifically for high-performance electric dirt bikes, delivering stable handling, strong impact absorption, and consistent control on aggressive trails, jumps, and mixed terrain riding. Built around Arctic Leopard XE PRO S specifications, it provides a factory-level fit and geometry match for 19” and 21” wheel setups.

② Inverted Oil-Spring Damping System — A precision-engineered inverted suspension design with oil-spring damping delivers smooth compression, controlled rebound, and improved front-end stability under hard braking, high-speed riding, and repeated impacts.

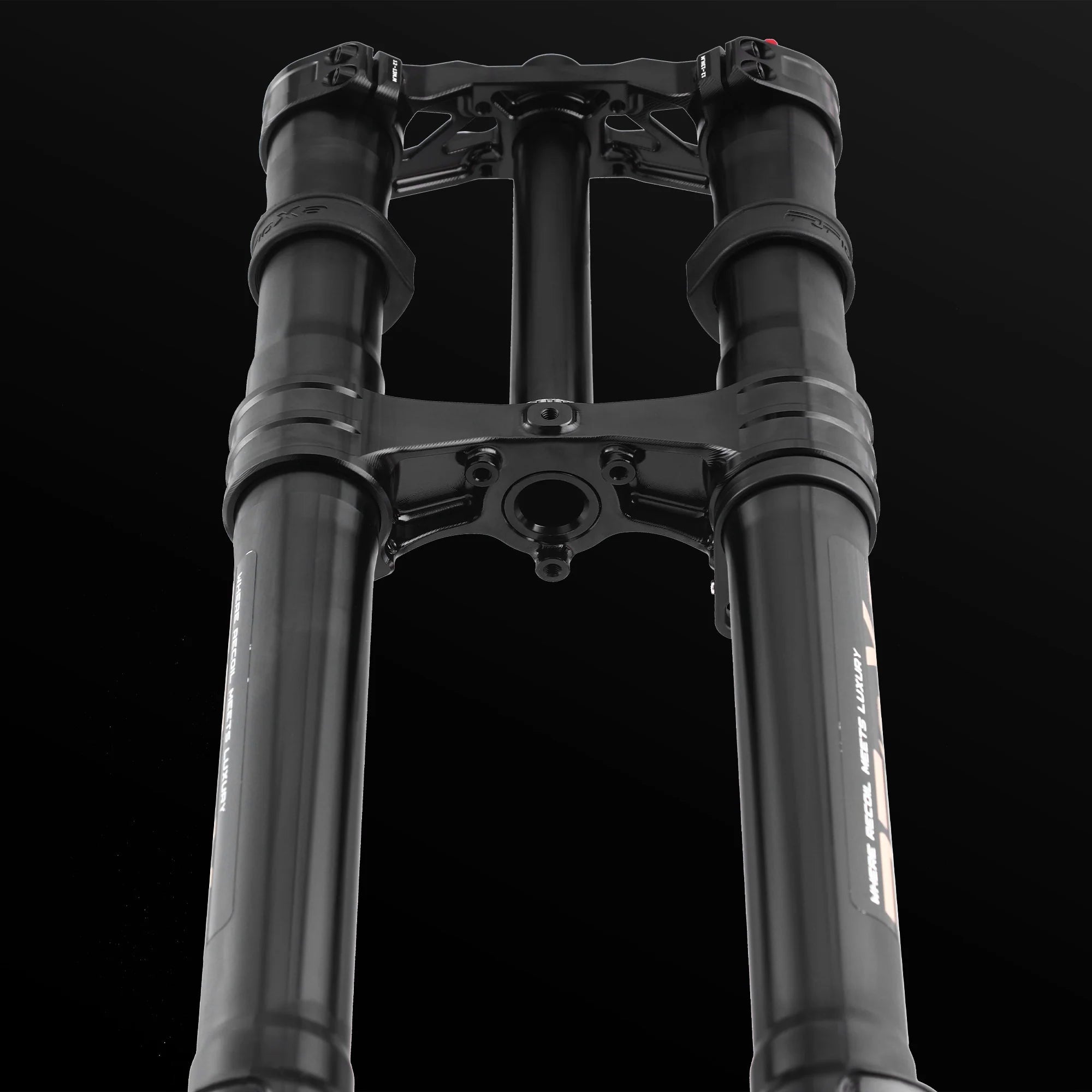

③ Reinforced CNC + Forged Construction — Built with AL6061-T6 forged aluminum lower brackets and AL7075-T6 fork tubes, paired with a MAX CNC precision-machined triple clamp interface for increased rigidity, durability, and long-term off-road reliability.

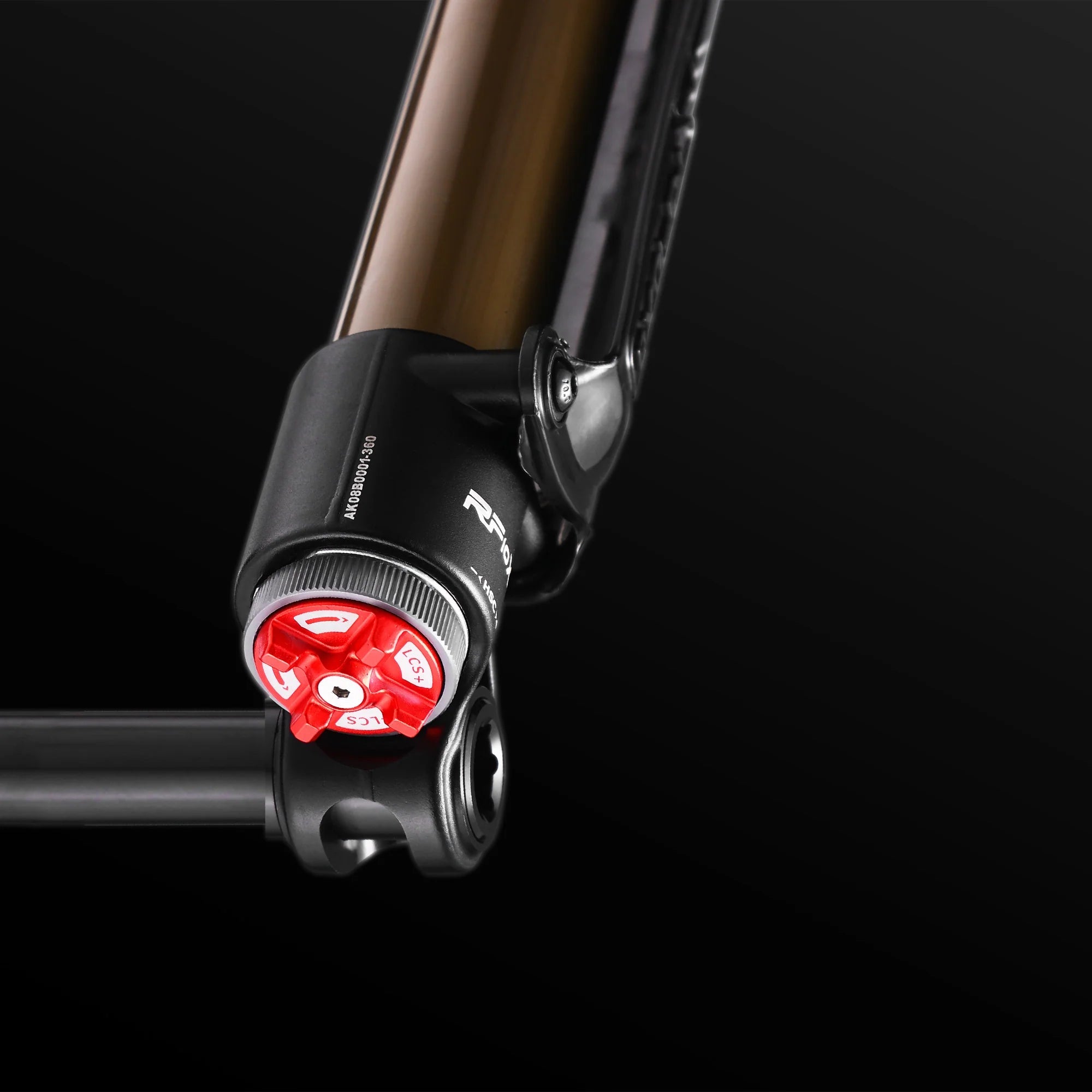

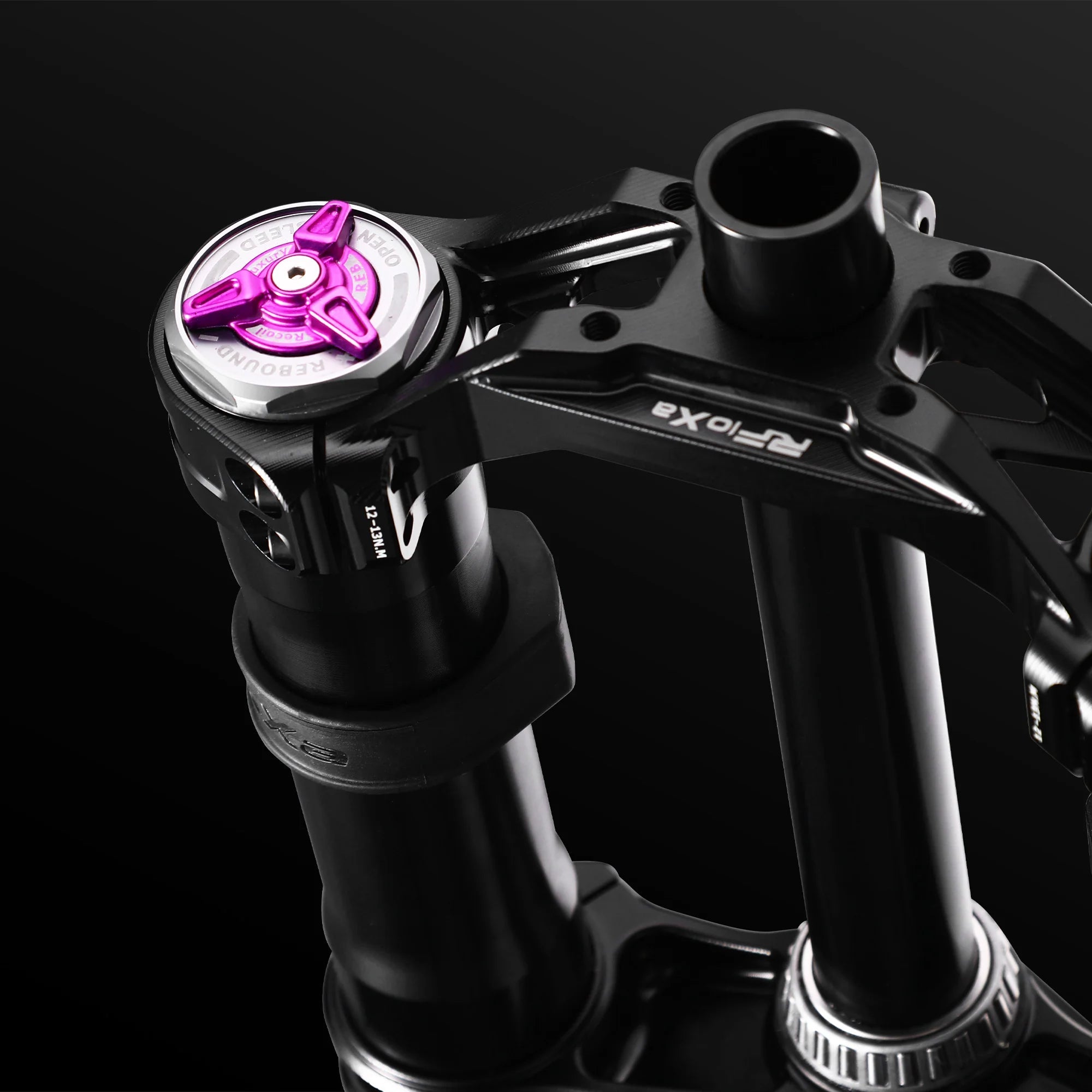

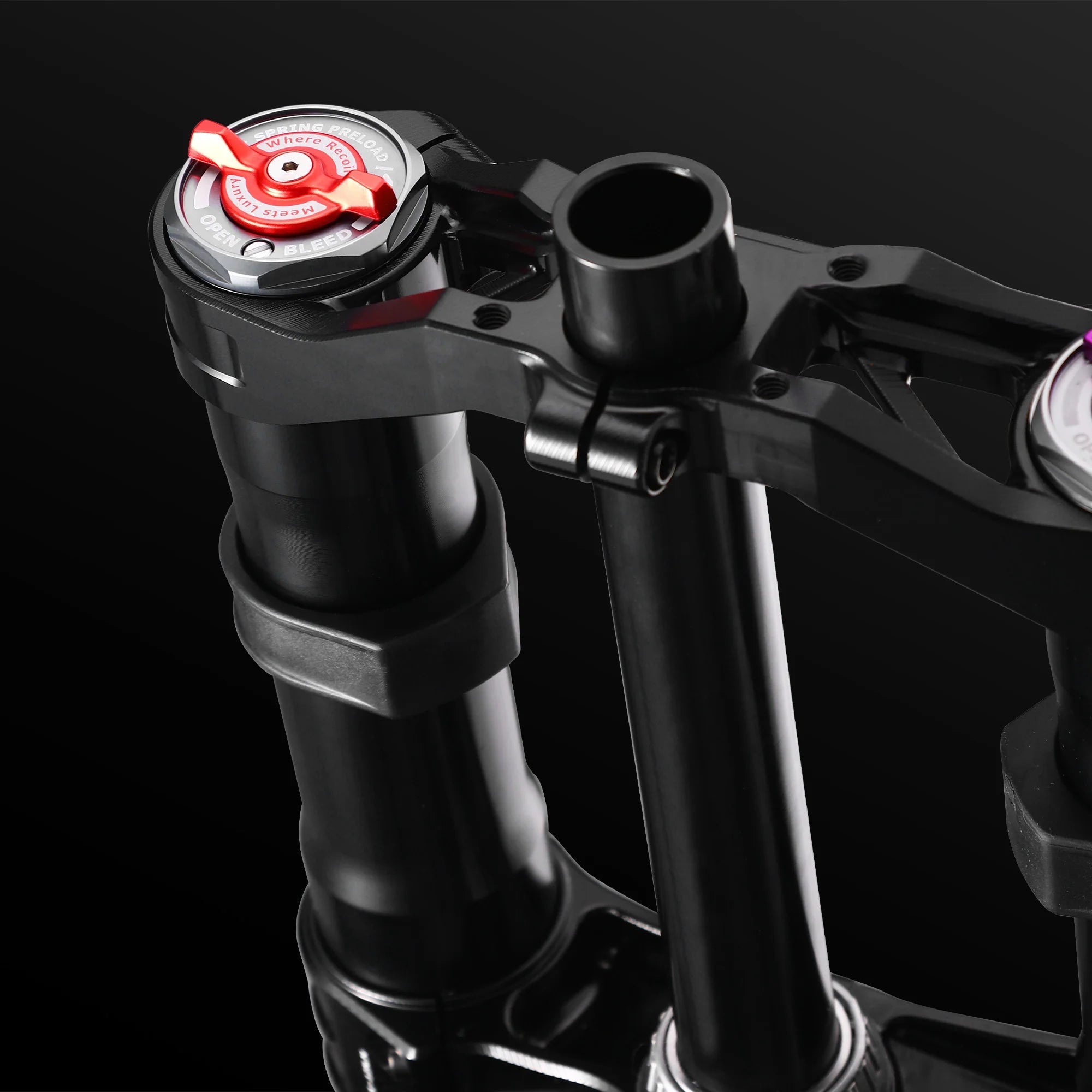

④ Multi-Stage Adjustability — Full tuning control with high-speed compression, low-speed compression, rebound damping, and spring preload adjustments allows riders to fine-tune performance based on rider weight, terrain, and riding style.

⑤ Long-Travel Impact Absorption — 228mm of main piston travel provides enhanced shock absorption for larger impacts, drops, and technical terrain, while maintaining front-end stability and predictable handling.

⑥ Optimized Brake & Fit Compatibility — Designed with a 90mm caliper mount spacing and support for up to 220mm disc brakes (upgradeable), ensuring strong braking performance for high-power electric dirt bikes.

Fitment
Arctic Leopard XE PRO S

Wheel Compatibility: 19” / 21”

Spring Weight Guide
45lb Spring: ≤85kg (≤187 lbs)

55lb Spring: 85–120kg (187–265 lbs)

45–60lb Progressive Spring: 80–130kg (176–286 lbs)

Specifications
Center Distance: 800mm

Main Piston Travel: 228mm

Tube Diameter: Ø37mm

Caliper Mount Spacing: 90mm

Disc Brake Size: Ø220mm (Upgradeable)

Damping System: Inverted Oil-Spring

Adjustments: High-Speed Compression, Low-Speed Compression, Rebound, Spring Preload

Materials:

AL6061-T6 Forged Aluminum Alloy Bottom Brackets

AL7075-T6 Aluminum Fork Tubes

Spring Wire: 55CRSI

Additional Note
Upper bearing is not pre-installed. Fork ships with standard configuration to ensure compatibility across multiple bike models and setups.
